IR – Instrument Rating

IR stands for Instrument Rating and is our abilitation to operate without visual reference (mandatory for airline operations).
Here are a few tips concerning it.

Documents courtesy Amaury-de-la-Grange FTO

Index

Interception:

Racetracks:

Snowtam decoder:

  • notam format
  • metar format

Changing radial using 90° interception

1. Introduction

Changing radial using 90° interception is an exercise used at the beginning of IFR training in the aim of:

  • Understanding the visualization of radials
  • Learning to manage time and the chronological sequence of the calculations/

2. Objective

Mentally project the flight path, calculate the anticipation required in order to finish on the desired radial.

3. Reminders

Anticipation with an interception angle of 90°:

  • 20/T'= A° (no wind).

Reminder on cosine in order to:

  • Determine the moment where the deviation in flight path should begin.
  • Know the distance from the station when the deviation in flight path has finished.

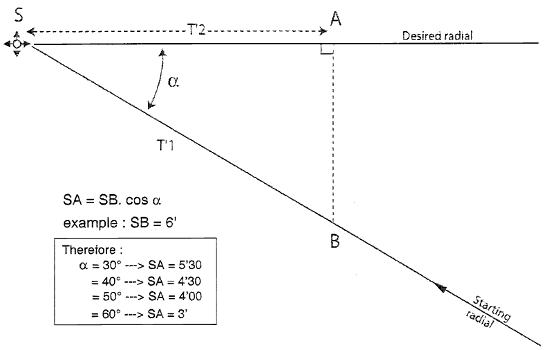

90° interception
With the turn:

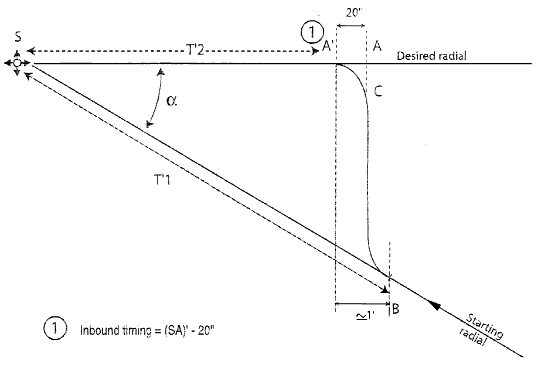

90° interception turn
4. Description

4.1 General method:

  • Changing radial using the 90° interception method where the angular difference between the two radials is 30° to 60°.
  • Intercepting the desired radial at 90°.

ADI: 90° visualizing example

Example:

  • The aircraft is on radial 230
  • The radial to intercept is inbound radial 290

- Visualizing the example on the ADI

  1. Visualize the radial to be intercepted
  2. Visualize the current radial
  3. Visualize the turn direction and the approximate TRK (m) (010 - 020)

4.2 In practice:

1-> Visualization and projection onto ADI
2-> Direction of turn
3-> TRK (m) / HDG (m)
4-> When established on heading: set the navigation instrument for the desired track and crosscheck
5-> Calculate T2 and the anticipation 20/T2'

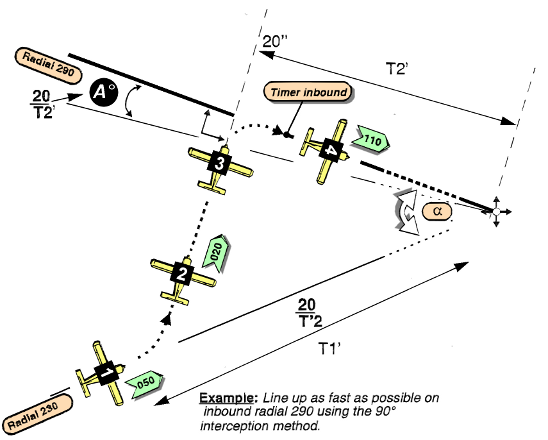

90° real interception example
6-> Add the effect of wind during the turn to the anticipation
7-> Calculate the next HDG (m)
8-> At the end of the intercepting turn and with wings level: start inbound timing using T2'-20" (no wind)

5. Key Points

_Visualization of the exercise
_Organisation of the workload:

  • HDG (m) for 90° interception
  • Anticipation
  • Next HDG
  • Estimate the inbound time
6. Common errors

  • Poor mental projection
  • Forgetting the wind
  • Forgetting the anticipation
  • Rate one turn not expected
  • HSI error: setting the course index 180° in the opposite direction. Turning the wrong way.

Change of radial: 30°/40° Method

1. Introduction

30°/40° radial changes are aimed at optimising the flight path time for a procedure (required by pilot or ATC).

2. Objective
30°/40° interception ADI visualization
To be able to line up quickly on a reference radial while approaching overhead station.

3. Description

Overview: (angular difference of 20° to 60°)

  1. Visualise where the aircraft is going
  2. Visualise current position
  3. Turn direction and calculation of magnetic track
  4. Visualise the next radial 10° further along
  5. Calculate next heading (if left turn then closing turn will be to the right and vice versa...)

Example:

Aircraft is currently on inbound radial 180, intercept inbound radial 240. Call out: "INTERCEPT INBOUND RADIAL USING 30°/40° METHOD".
Left turn to approximate heading of 330°.

Detailed description:

30-40 method for radial interception30°/40° METHOD (for an optimum flight path in terms of time at three minutes before the station)

IF OPENING TURN INTO THE WIND
δ=X, 2/3 X, X/3

The calculation should be made on crossing each radial.

Key Points:

  • Visualisation
  • Direction of opening turn
  • Heading stable, calculation of next track
  • For δ use X, 2/3 X, X/3
  • Integrate the wind factor throughout the manoeuvre and joining turn towards the desired track.

Common Errors:

  • Bad visualisation
  • Same calculation used for next radial
  • Direction change too soon/late
  • Drift calculation too long
  • Bad anticipation, at the end of the exercise the 10° value is often incorrect due to wind
  • Remember safety altitude which may vary during the radial change procedure.

Racetracks

1. Introduction

  • Racetracks are flight paths specified on approach charts and are used to position the aircraft on the approach track.
  • Holding patterns are used to make an aircraft wait before approach.

2. Objective

To know how to visualize the holding pattern or racetrack, determine the entry type and verify the aircraft position in order to exit on the correct track.

3. Detailed Description

Racetrack or holding pattern requirements:

  1. A fix (beacon, radial intersection, DME distance).
  2. An inbound track
  3. A turn direction (the standard turn is to the right).
  4. An outbound time or a defined fix (distance, beacon or radial).
  5. A second turn (procedure turn for a racetrack).

Note: All turns should be made at rate one (except for correction of overshoot or undershoot).

Example:
racetrack visualization
Call-out: "RACETRACK OR HOLDING PATTERN ON INBOUND RADIAL 270, RIGHT TURN, OUTBOUND TIME 1 MINUTE".

- Visualizing the example on the ADI

  1. Visualize where the aircraft is going
  2. Visualize where the aircraft is
  3. Direction of turn and magnetic heading


Execution and verification of racetrack or holding pattern:

Know how to calculate rapidly (3 radials, the "skeleton" of the racetrack)

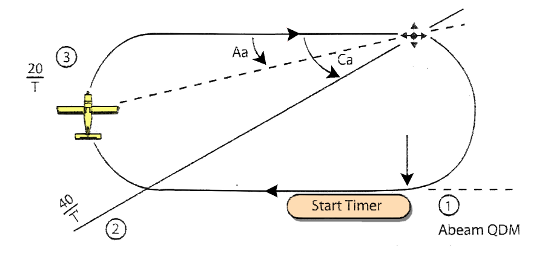

racetrack execution

Aa: Anticipation angle
Ca: Check angle

  1. Abeam QDM: is perpendicular to the track (using the needle arrowhead)
  2. Check radial (Cr): calculation method 40/T (with the tail of the needle)
  3. Outbound Time 1' 1'30' 2'00 2'30 3'00
    Ca 40° 25° 20° 15° 10°
    Aa 20° 12° 10°
  4. Position verification radial calculated using the 20/T method
    • Verified using the parallel magnetic track
    • Verified using the needle arrowhead.

- Visualizing further the example on the ADI

Racetrack on inbound radial 270, right turn, outbound time 1 minute (no wind).
racetrack visualization example on ADI
Method without wind:

  1. Aircraft stabilize on heading: start timer
  2. If the abeam point has not been passed: re-start timer when passing abeam QDM
  3. Interception of position check radial (Cr)
  4. Once at the perpendicular heading, verify position using 20/T
  5. 30° before final heading, make a final verification

Using the ADI scheme:

  1. **none**
  2. Abeam QDM: QDM 360°
  3. Check radial (Cr): 270 - 40 = 230
  4. QDM 20/T is 090 - 20 = 70


Entry sectors:

all racetracksFour entry sectors are defined and each sector has an associated flight path.
The manoeuvre begins when the aircraft passes overhead the holding fix.

Note: Sectors 1 - 2 and 3 are ICAO recommendations.
Sector 4 is a special procedure used by the operator (France only)


Parallel Entry:

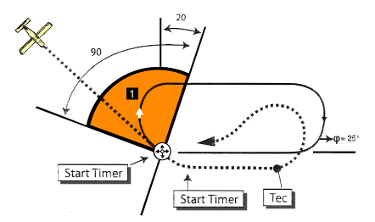

parallel entry
When overhead the fix, start the timer and turn to take the reciprocal magnetic track to the inbound track for the racetrack of holding pattern and maintain this heading for:

Te =

  • 1 min if tailwind or no wind
  • 1 min 30 seconds if headwind

Turn at 25° of bank in the opposite direction to the flight path specified in order to join the inbound track.

Note:
Te = Outbound time
Tec = Corrected outbound time


Offset Entry:

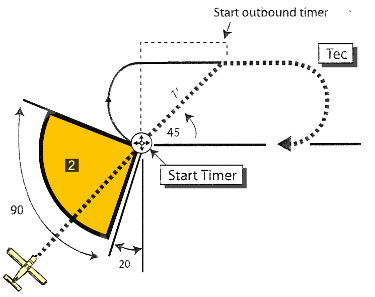

offset-entry
When overhead the fix, start timer and set the heading which will allow a flight path to be followed for one minute which is at an angle of 45° to the inbound track on the racetrack or holding pattern side, then follow the parallel track for the planned time or for the specified time minus one minute.

With wind: the opening 45° turn will be modified by the drift δ of the racetrack or holding pattern track.

Time correction:

  • if heading away from the crosswind then correct using 1'-δ" for the track
  • if heading into the crosswind then correct using 2δ" for the track.


Direct Entry:

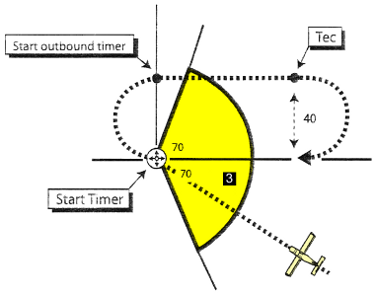

direct-entry
When overhead fix, start timer to carry out a turn in the specified direction in order to follow the outbound track for the planned time (holding pattern) or for an imposed distance (racetrack procedure) then turn in the specified direction to line up on the inbound track.

Special 90° Entry:

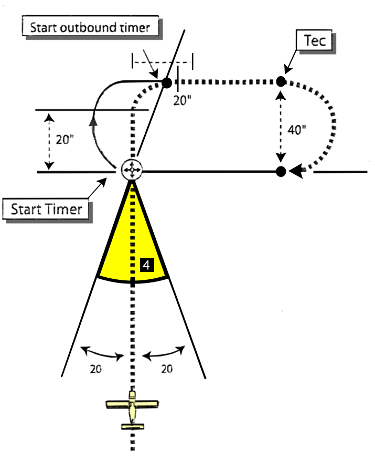

special-90-entry
When the aircraft arrives in the 40° sector defined on the scheme on your right, the alteration of heading will be so large in direct entry that the quality of the outbound leg will be compromised by the reduction in the turn diameter.

A special 90° (direct) entry has been defined.

When overhead fix, start timer and follow a track perpendicular to the specified inbound track for 20 seconds. Turn in the specified direction to follow the outbound magnetic track for the planned time of 20 seconds (holding pattern procedure or for the imposed distance (racetrack procedure), then turn to line up on the inbound track.

4. Key Points

Organisation of workload:

  • visualization of position
  • Turn direction for holding or racetrack pattern
  • Magnetic track/magnetic heading
  • Calculation of abeam QDM
  • Calculation of check radial (Cr) 40/T
  • Calculation of anticipation radial 20/T
  • Calculation of magnetic heading with alignment on track if necessary

5. Common Errors

  • Bad visualization of position --> causes wrong entry type to be used
  • Slow calculations
  • Not respecting the verifications (abeam, lead radial)
  • Forgetting the 1st or 2nd turn will be into the wind
  • No verifications during 2nd turn

How to - use a VOR/HSI/ADF


You need to enable Java in your browser to use Tim's Air Navigation Simulator


Control Function
Mouse Click/Drag on the Map Move the airplane, the transmitters, or change the wind vector (if in wind mode)
Click the Buttons Change the vector (OBS) for the instrument (except the RMI, DG)
Keyboard Up & Down Arrows Increase or decrease the airplane
speed (60-300 kt)
Left and Right Arrows Increase or decrease turn rate (deg/sec)
Space Bar Instantly set the turn rate to zero
Enter Reposition transmitters to original positions -
useful if you've moved them off the map
R Toggle radials on & off (dark colors = from side of VORs, light colors = TO side of VORs)
1 or 2 Switch instrument 1 or 2 between VOR, HSI, ADF,
RMI, DG, or Text
W Toggle Wind mode (shown in status line) - when in wind mode you can click/drag on the map to change the wind vector
P Pause the animation (wind and airplane motion) - you
can still rotate the instruments and drag the plane
T Trace - start/stop a trail of dots showing the airplane's path
H Hide - stop/start displaying the airplane and trace
L Lost - randomly reposition the airplane on the map - most useful when the plane is hidden

source: Tim B. Carlson


Useful Formulae

Abbreviations

Aa Anticipation angle
Bf Base factor
BRG Bearing
Ca Check angle (for racetracks)
Cr Check radial >(for racetracks)
D Distance
δ Drift
HDG(m) Magnetic heading
T time
te Outbound time
tec Corrected outbound time
TRK(m) Magnetic track
Ve Effective Wind
Vt Crosswind component
Vw wind (general)
X Maximum drift


Simplified formulae

Bf = 60/TAS
TAS/
Groundspeed
80 kt 100 kt 120 150 kt 180 kt 200 kt
Bf 0,75 0,6 0,5 0,4 1/3 0,3
NM/min 1,3 1,6 2 2,5 3 3,3

Ve = Groundspeed - TAS
Vt = δ x TAS (NM/min)
X = Vw . Bf

Wind angle Drift δ Ve*
0° to 30° X/3 Vw
30° to 60° 2/3 X 2/3 Vw
60° to 90° X Vw/3

*Note: simplified calculation where no GPS or DME is available

TAS = IAS + 1% per 600 feet of altitude ± 1% for every 5% C difference from ISA

Note:

  • Hotter --> "+"
  • Colder --> "-"

Anticipation

Interception
Angle
120° 90° 60° 30°
A°: anticipation angleAnticipation
angle
30/T 20/T 10/T 2/T


Rapid join

te = 100 - α
tec (headwind) = (100 - α) + 2 Ve
tec
(tailwind) = 100 - α

DME Arc

  • Anticipation: D (NM) = Groundspeed/200
  • Anticipation for final approach interception: A° = TAS/3D or 20/T


Racetrack (check radial and anticipation angle)

Outbound time T 1' 1'30 2'00 2'30 3'00
Ca* 40° 25° 20° 15° 10°
Aa* 20° 12° 10°

  • *Ca = Check angle
  • *Aa = Anticipation angle

Entry type Outbound time
Tec
Inbound time
T (1)
Turn 20/T
Direct
direct entry racetrack
Headwind:
Vw = T + (T+1) Ve
Tailwind:
Vw = T - (T . Ve)
Headwind Vw = T + 1/2.Ve for every minute of T
Tailwind Vw = T - 1/2.Ve for every minute of T
With headwind component:
3δ sec*
0 correction
with tailwind component
+ 50% or 30/T with tailwind
- 50% or 10/T if headwind
Perpendicular
perpendicular entry racetrack
Headwind:
Vw = (T - 20") + (T + 1) Ve
Tailwind:
Vw = (T-20") - (T . Ve)
With headwind component:
20 sec ± 3 sec*
20 sec
with tailwind component
Offset
offset entry racetrack
Headwind:
Vw = (T-1) + (T+1) Ve
Tailwind:
Vw = (T-1) - (T.Ve)
With headwind component:
1min + 2 sec
1min - δsec
with tailwind component

NOTE:

  • The product of (T-Ve) and (T+1) Ve is in seconds
  • Ve, δ and δ sec on racetrack axis
  • *if 3δ sec or 20 sec + 3δ sec > 30 sec then correct for drift


SNOWTAM DECODER

SNOWTAM DECODER - Notam Format
AERODROME A
DATE/TIME OF OBSERVATION
Time of completion of measurement In GMT
B B B
RUNWAY DESIGNATORS C C C
CLEARED RUNWAY LENGTH (meters)
if less than published length
D D D
CLEARED RUNWAY WIDTH (meters)
if less than published length
if offset to the Left or Right of RWY center line add "L " or "R "
E E E
DEPOSITS OVER TOTAL RUNWAY LENGTH
Observed on each third of the runway, starting from threshold
having the lower RWY designation number
NIL - CLEAR AND DRY
  1. DAMP
  2. WET or water patches
  3. RIME OR FROST COVERED (depth less than 1 mm)
  4. DRY SNOW
  5. WET SNOW
  6. SLUSH
  7. ICE
  8. COMPACTED OR ROLLED SNOW
  9. FROZEN RUTS OR RIDGES
F F F
MEAN DEPTH (mm)
for each third of total RWY length
G G G
BRAKING ACTION on each third of RWY
MEASURING EQUIPMENT
H H H
MEASURED OR CALCULATED COEFFICIENT
or ESTIMATED BRAKING ACTION

0.40 and above GOOD - 5
0.39 to 0.36 MEDIUM/GOOD - 4
0.35 to 0.30 MEDIUM - 3
0.29 to 0.26 MEDIUM/POOR - 2
0.25 and below POOR - 1
9 -- unreliable UNRELIABLE - 9
  • When quoting a measured coefficient use the observed two figures,
    followed by the abbreviation of the measuring equipment used.
  • When quoting an estimate use single digits)
CRITICAL SNOWBANKS
If present, insert height (cm) / distance from the edge of runway
(m) followed by "L", "R" or "LR" if applicable
J J J
RUNWAY LIGHTS
If obscured, insert "YES" followed by "L", "R"
or both "LR" if applicable
K K K
FURTHER CLEARANCE
if planned insert length (m) / width (m) to be cleared
or if to full dimensions, insert "TOTAL"
L L
FURTHER CLEARANCE EXPECTED TO BE COMPLETED BY... (GMT) M M
TAXIWAY
If no appropriate taxiway is available, insert "NO"
N N N
TAXIWAY SNOWBANKS
If more than 60 cm, insert "YES" followed by distance apart
P P P
APRON
If unusable insert "NO"
R
NEXT PLANNED OBSERVATION/MEASUREMENT IS FOR...
day / month / hour in GMT
S
PLAIN LANGUAGE REMARKS
including contaminant coverage and other operationally significant
information, e.g. sanding, deicing
T

source: Sir Pat BOONE, Captain B737-B767 from www.b737mrg.net

Comments (0) Trackbacks (0)

No comments yet.


Leave a comment

I'm NOT a spammer *

No trackbacks yet.
